A steel wire 4.0 m in length is stretched through 2.0 mm. The cross-sectional area of the wire is 2.0 mm2. If Young's modulus of steel is 2.0×1011 N/m2. Find(a) the energy density of wire,(b) the elastic potential energy stored in the wire.

Here, l=4.0 m,Δl=2×10−3 m,A=2.0×10−6 m2,Y=2.0×1011 N/m2(a) The energy density of stretched wireU=21× stress × strain =21×Y×( strain )2=21×2.0×1011×(4(2×10−3))2=0.25×105=2.5×104 J/m3(b) Elastic potential energy = energy density × volume=2.5×104×(2.0×10−6)×4.0 J=20×10−2=0.20 J

Get 2 FREE Instant-Explanations on Filo with code FILOAPP

Home

Class 11

Physics

Mechanical Properties of Solids

Youngs modulus and breaking stress

A steel wire 4.0 {~m} in length is stretched through 2.0 {~mm}

Question

Medium

Solving time: 3 mins

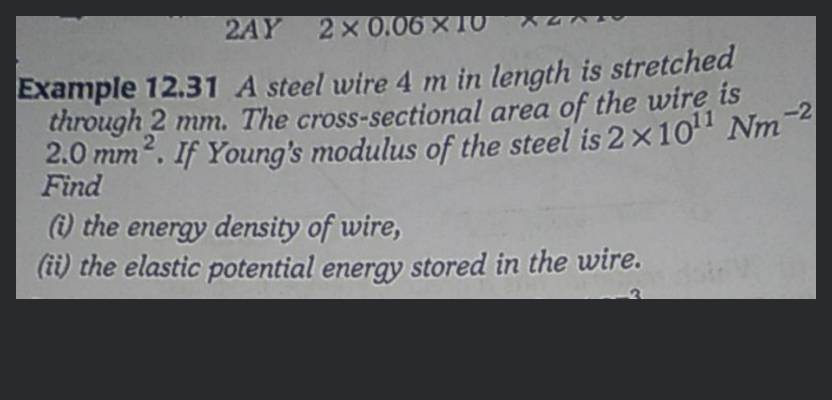

A steel wire $4.0 m$ in length is stretched through $2.0 mm$ . The cross-sectional area of the wire is $2.0 mm^{2}$ . If Young's modulus of steel is $2.0 \times 1 0^{11} N / m^{2}$ . Find
(a) the energy density of wire,
(b) the elastic potential energy stored in the wire.

Views: 6,076 students

Updated on: Mar 22, 2023

Book:

Mechanics Volume 2 (DC Pandey)

Found 5 tutors discussing this question

Olivia Discussed

A steel wire

4.0 m

in length is stretched through

2.0 mm

. The cross-sectional area of the wire is

2.0 mm^{2}

. If Young's modulus of steel is

2.0 \times 1 0^{11} N / m^{2}

. Find
(a) the energy density of wire,
(b) the elastic potential energy stored in the wire.

11 mins ago

Discuss this question LIVE

11 mins ago

Text solutionVerified

Here,

l = 4.0 m, Δ l = 2 \times 1 0^{- 3} m, A = 2.0 \times 1 0^{- 6} m^{2}, Y = 2.0 \times 1 0^{11} N / m^{2}

(a) The energy density of stretched wire

U = \frac{1}{2} \times stress \times strain = \frac{1}{2} \times Y \times (strain)^{2} = \frac{1}{2} \times 2.0 \times 1 0^{11} \times (\frac{( 2 \times 1 0 ^{- 3} )}{4})^{2} = 0.25 \times 1 0^{5} = 2.5 \times 1 0^{4} J / m^{3}

(b) Elastic potential energy

=

energy density

\times

volume

= 2.5 \times 1 0^{4} \times (2.0 \times 1 0^{- 6}) \times 4.0 J = 20 \times 1 0^{- 2} = 0.20 J
