A thin spherical shell of radius R has charge Q spread uniform
Question
Medium
Timing Icon

Solving time: 3 mins

A thin spherical shell of radius has charge spread uniformly over its surface. Which of the following graphs most closely represents the electric field produced by the shell in the range , where is the distance from the centre of the shell?
Electric field
Electric field
Electric field
Electric field

Views

Views: 5,816 students

Updated on: Mar 2, 2023

Book

Book:

Arihant Physics JEE Main Chapterwise Solutions (2019-2002) (Arihant)

Exam

Exam:

JEE Mains 2008

tutor 0tutor 1tutor 2
Found 3 tutors discussing this question
Owen Discussed
A thin spherical shell of radius has charge spread uniformly over its surface. Which of the following graphs most closely represents the electric field produced by the shell in the range , where is the distance from the centre of the shell?
10 mins ago
Discuss this question LIVE
10 mins ago

Text SolutionText solutionverified iconVerified

Exp. (a)

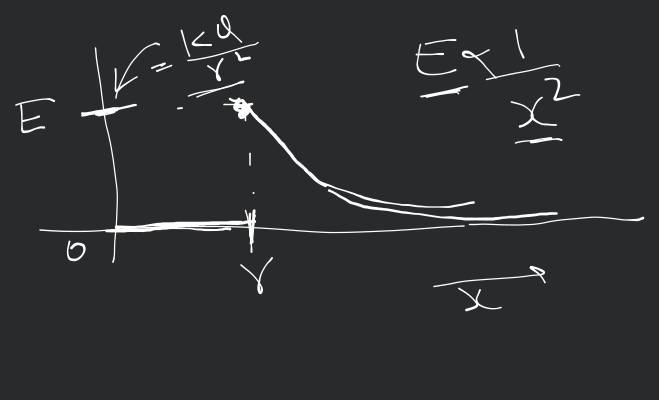

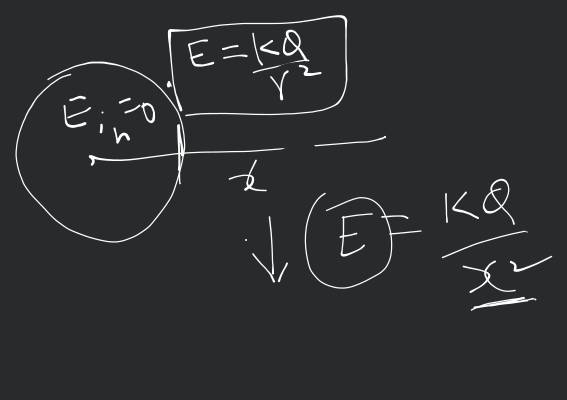

For uniformly charged spherical shell,


Was this solution helpful?
73
Share
Report
Video Solution
